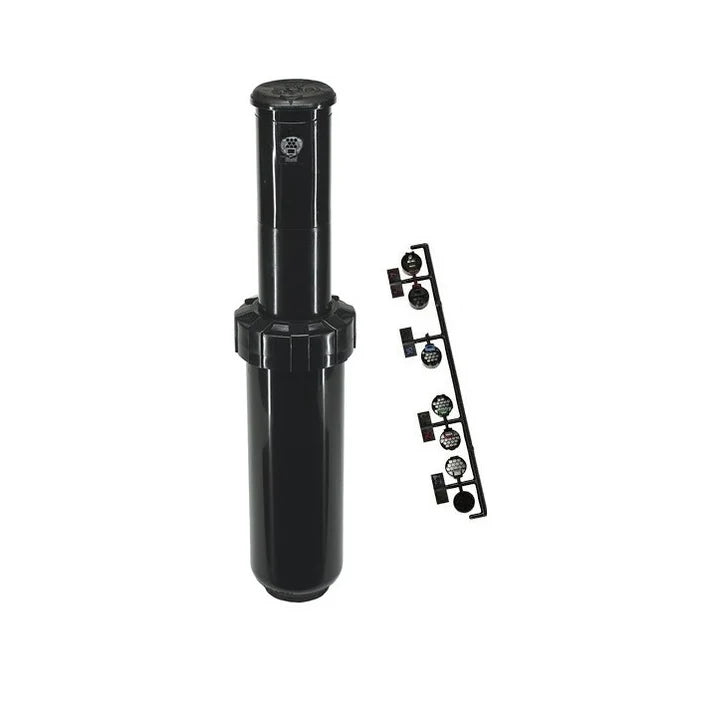

T7 Sports Field Rotor Sprinkler (with Plastic Riser)
The Toro® T7 Rotor is built to withstand the harsh conditions present in municipal, sports field and commercial rotor applications. The planetary gear-drive and closed gear box delivers precision full circle rotation speed and make the T7 a proven performer in dirty water applications.
Single Port with highly efficient "Honeycomb" nozzles for uniformity.
Top arc indication allows for wet and dry adjustments.
Vandal and abuse resistant through SmartArc™ and slip clutch.
Zero flush wiper seal and heavy-duty retraction spring.
5" (125mm) pop-up nozzle
Inlet 1" female threaded
High Flow:
Nozzles #7.0 - #27.0
Radius 14.1 - 22.9m
Flow 25.4 - 116 l/m
Trajectory 25?
Pressure 2.8 - 6.9 bar
Low Flow:
Nozzles #2.0 - #9.0
Radius 12.2 - 17.1m
Flow 6.4 - 49.2 l/m
Trajectory 25?
Pressure 2.8 - 6.9 bar
