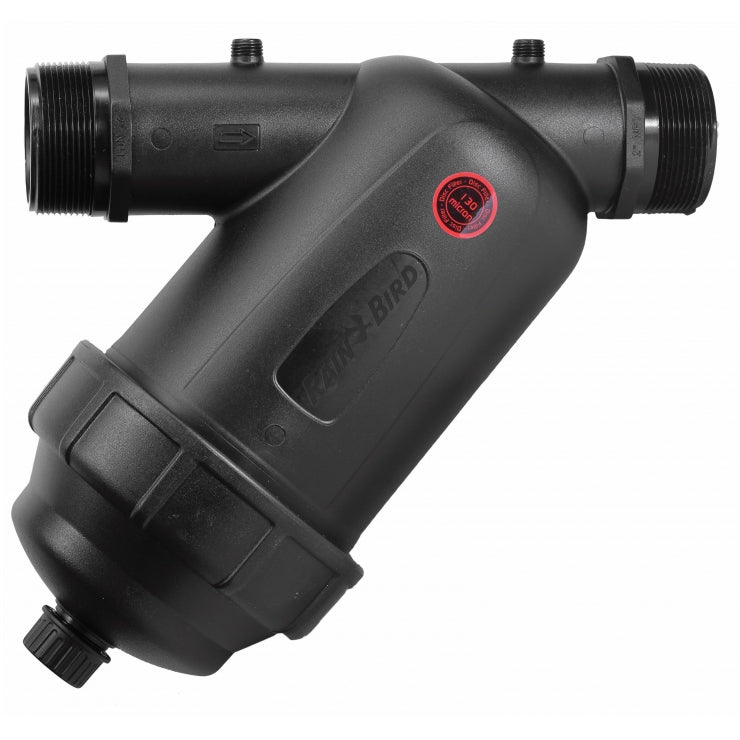

LARGE-CAPACITY AND LOW MAINTENANCE WITH A SOLID BUILD
• Durable Screen Filters can be easily removed for cleaning, significantly reducing cleaning time.
• Disc Filters decompress for easy cleaning.
• Larger filer area - allows longer times between cleaning.
• Flow design draws particles away from filter cartridges, further extending time between
cleanings.
• Auxiliary connection has a small threaded cap that allows for draining or depressurization.
• Operating Range
- 1” Model: Maximum flow: Up to 6 m3/hr -Filtering surface (disc): 180cm2.
- 1.5” Models: Maximum flow: Up to 14 m3/hr -Filtering surface (disc): 310 cm2.
- 2” Models: Maximum flow: Up to 25 m3/hr -Filtering surface (disc): 525 cm2 Maximum
Pressure: 8 bar Maximum Temperature: Up to 60°C.
• 1": (6.8" H x 7.5" W x 3.3" D) 1.5": (9.5"H x 10.3"W x 5.7" D) 2": (9.7"H x 10.6" W x 5.7"D).
• 120 Mesh = 130 Micron.
• 3 year warranty.
