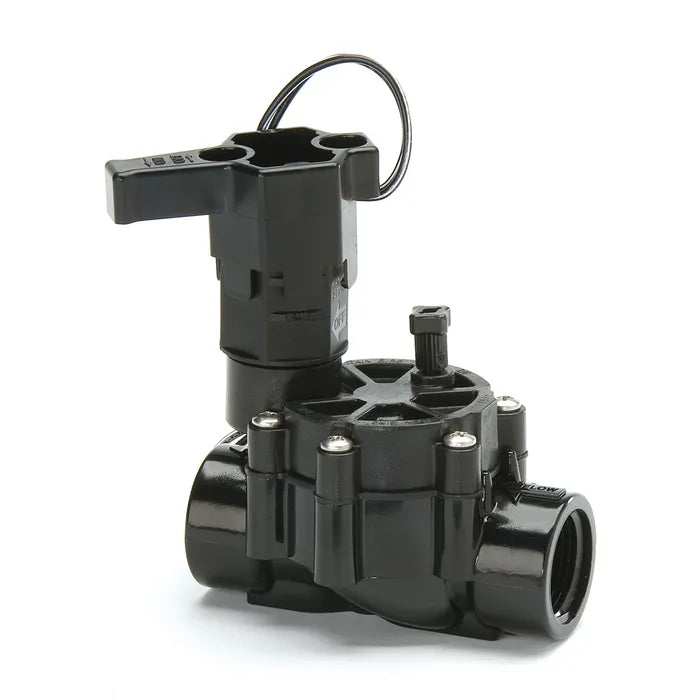

Diaphragm Valve – The Industry Leader for Over 25 Years
• Double-filtered (diaphragm and solenoid) pilot-flow design for maximum reliability and grit resistance.
• Buna-N, balanced pressure diaphragm with self-cleaning 200 micron pilot water filter and captive spring.
• Energy-efficient, low-power encapsulated solenoid with captured plunger and 200 micron solenoid filter.
• Unique, easy-to-turn pressure assisted flow control mechanism (DVF models only).
• External bleed to manually flush system of dirt and debris during installation and system start-up.
• Internal bleed for spray-free manual operation.
• Accepts Rain Bird TBOS latching solenoid for use with most battery-operated controllers.
• Operates in low-flow and Landscape Drip applications when a 200-mesh filter is installed upstream.
• Pressure: 1.0 to 10.4 bar.
• Flow: 0.8 to 151.4l/min
• 5 year warranty.
