Rain Bird offers the LNK Wi-Fi Module for Residential and Light Commercial Rain Bird controllers.

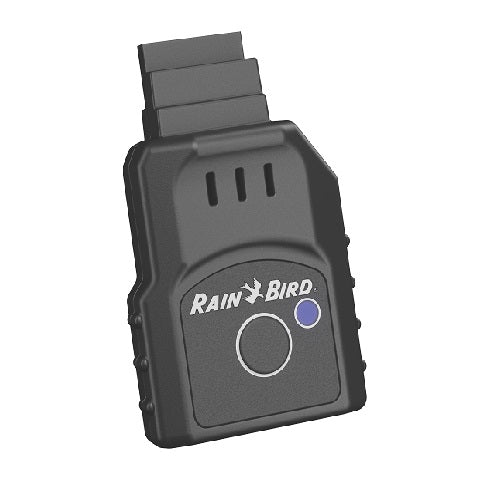

The New Rain Bird LNK Wi-Fi Module allows easy access and control of a Rain Bird irrigation system from anywhere in the world.
With the LNK Wi-Fi Module and Rain Bird’s FREE mobile app, users get access to off-site management, real-time alerts and advanced water management tools via their smart phone or tablet.
Control your Rain Bird irrigation system remotely from anywhere in the world.
Compatible with:
ESP-TM2
ESP-Me (Only units built after November 2016)
ESP-RZX(e)
Specifications
Supported Mobile Devices
Apple devices running iOS 8.0 or greater;
Android devices running OS 6.0 (Marshmallow) or later
Features
Seasonal Adjust
WiFi
Mobile App
Supported Wireless Frequency Bands
2.4 GHz only
Supported Wireless Networks
802.11 b/g/n only
Supported Wi-Fi Security Modes
None, Open, WEP, WPA-TKIP, WPA-AES, WPA2-TKIP, WPA2-AES, WPA2-AES-TKIP
Supported Communication Modes
Communication with module via module Access Point (hotspot); Communication with module via local area network; Communication with module via Rain Bird relay server
Operating Specifications
Operating Temperature: 14° F (-10° C) to 149°F (65°C)
Storage Temperature: -40°F (-40°C) to 150°F (66°C)
Operating Humidity: 95% max @ 50°F to 120°F (10°C to 49°C) non-condensing environment
Electrical Specifications
24VAC(RMS) 50/60Hz; 55mA max
Certifications
UL, cUL, CE, CSA, FCC Part 15b, WEEE, S-Mark, IP30, IFETEL, RE-D, LVD, RoHS
Dimensions
Width: 1.13 in.
Height: 1.83 in.
Depth: 0.48 in.
First Time Set Up
You can follow the step by step First set up Guide by clicking this Link:
