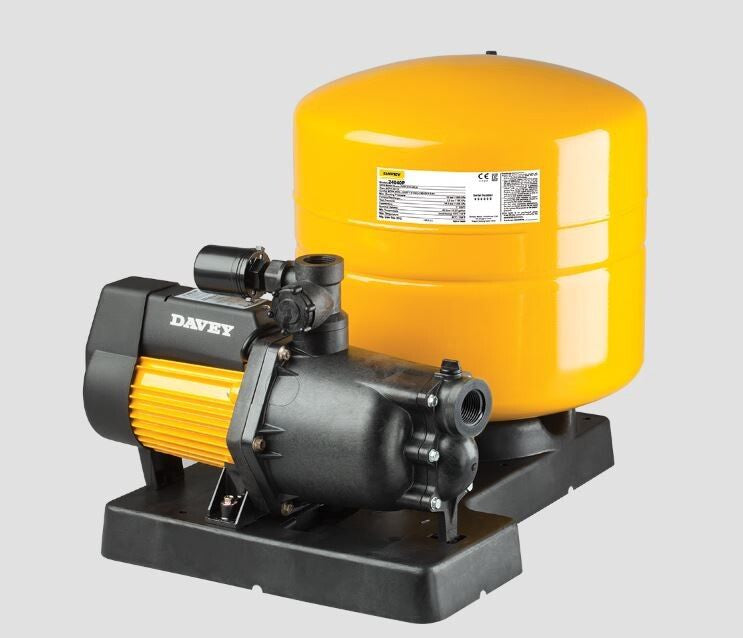

Davey DynaJet W/Pressure Switch X70 W/ Base mounted 40P Tank

Applications:

Ideal for average homes with modern appliances to large double storey homes, domestic water supply, pressure boosting and automatic water transfer.

ξ

Features & Benefits

äó¢ Manufactured from highest quality corrosion resistant materials

äó¢ Compact base mounting for quick and easy installation

äó¢ Fully adjustable pressure switch allows for installation adjustments

äó¢ TEFC motor-corrosion resistant and excludes dust and dirt

äó¢ Motor and pump designed for frequent starts

äó¢ Every tank and pump unit individually tested to guarantee reliable operation

äó¢ Low maintenance

äó¢ Easy to service if required

ξ

Pump

äó¢ Single stage jet assisted centrifugal with closed vane impeller

äó¢ 303 stainless steel pump shaft

äó¢ Internal suction side check valve fitted

HOME & GARDEN

äó¢ Mechanical shaft seal

äó¢ O-ring casing seals

äó¢ Pressure switch control with adjustable cut-in and cut-out pressure

ξ

Motor

äó¢ Davey manufactured

äó¢ 2 pole, 2850rpm, 50Hz

äó¢ TEFC with IP55 enclosure

äó¢ Class F insulation

äó¢ Permanently split capacitor design

äó¢ Double contact sealed C3-HTG rated ball bearings

äó¢ Protected against both high operating temperatures and high current by a built-in automatically resetting thermal overload

ξ

Tank

äó¢ Captive heavy duty butyl diaphragm meets FDA (USA), Watermark (Aust), WRAS (UK) and CE requirements for potable water

äó¢ Fully lined water cavity

ξ

Please refer to the documentation for all features and full technical specifications.
DYNAJET DATA SHEET
