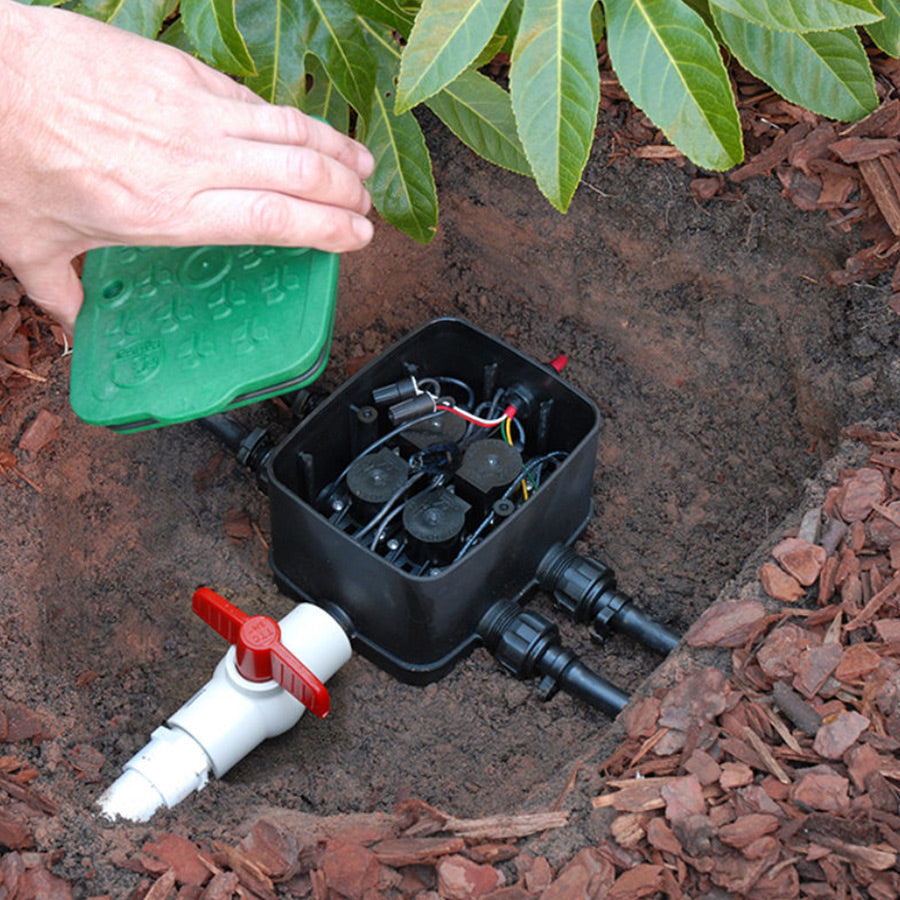

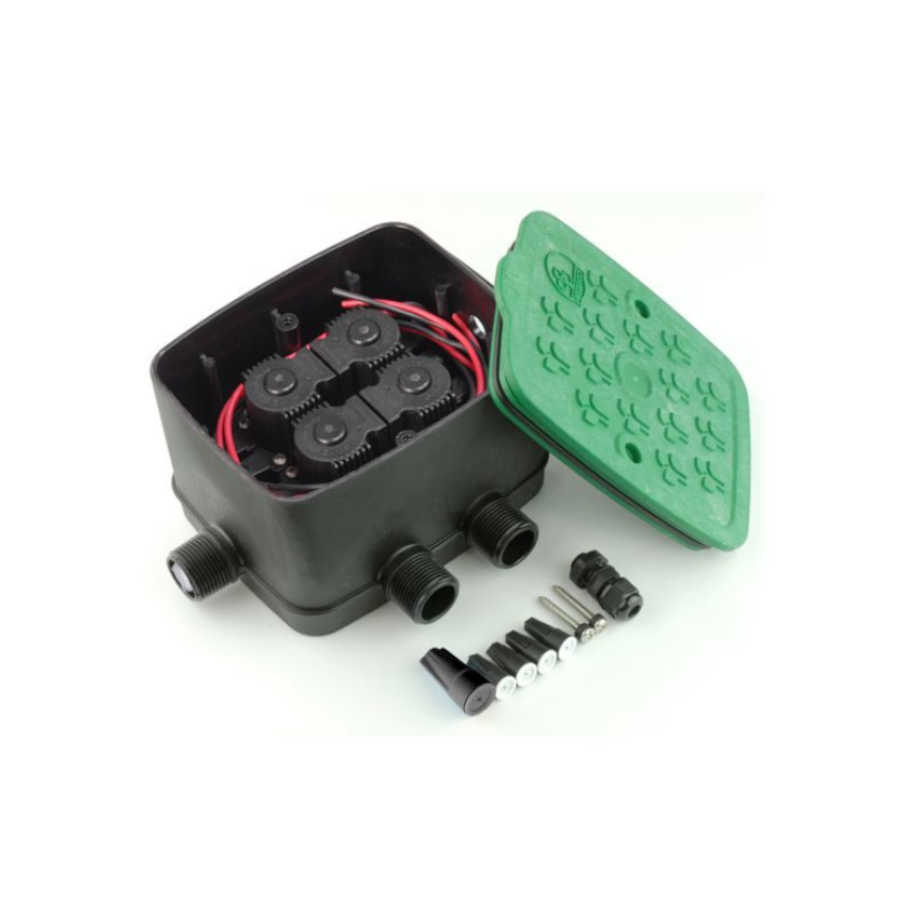

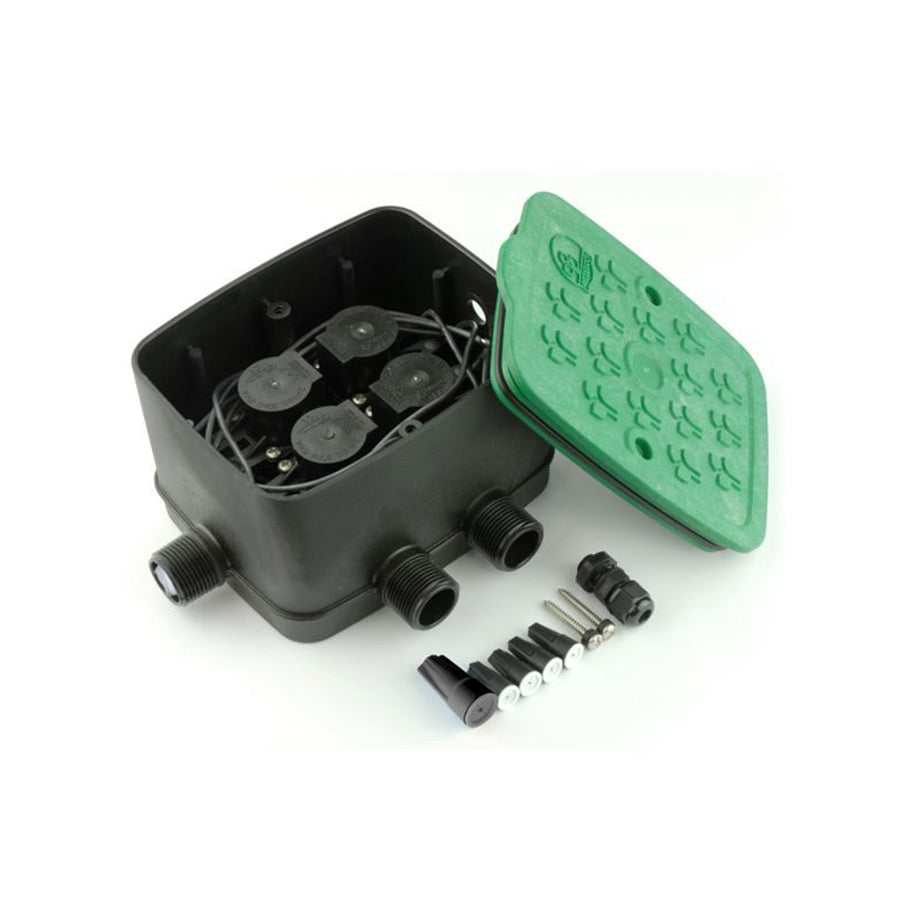

A compact valve box with 4 internal solenoid valves connects to either a 24Vac or 9Vdc Latching irrigation controller. Installation is uncomplicated, and the eZyvalve®4 provides a trouble-free way to distribute water to an irrigation system.
Features
- Pre-assembled with no internal pipe connections.
- High strength UV stabilised materials.
- Includes cable seal and wire connectors.
- Water, dust and pest resistance.
- Textured non-slip lid with o-ring seal and stainless steel screws.
- 20mm BSP male threaded inlet and outlet connections.
Specifications:
- Pressure - 24Vac: 20 kPa - 1250 kPa
- Pressure - 9Vdc: 20 kPa - 750 kPa
- Ambient Temperature: 2°C - 60°C
- Electrical - 24Vac: inrush current 320 mA, holding current 260 mA at 50 Hz
- Electrical - 9Vdc Latch: inrush current 1200 mA
- 20mm BSP male thread connections
