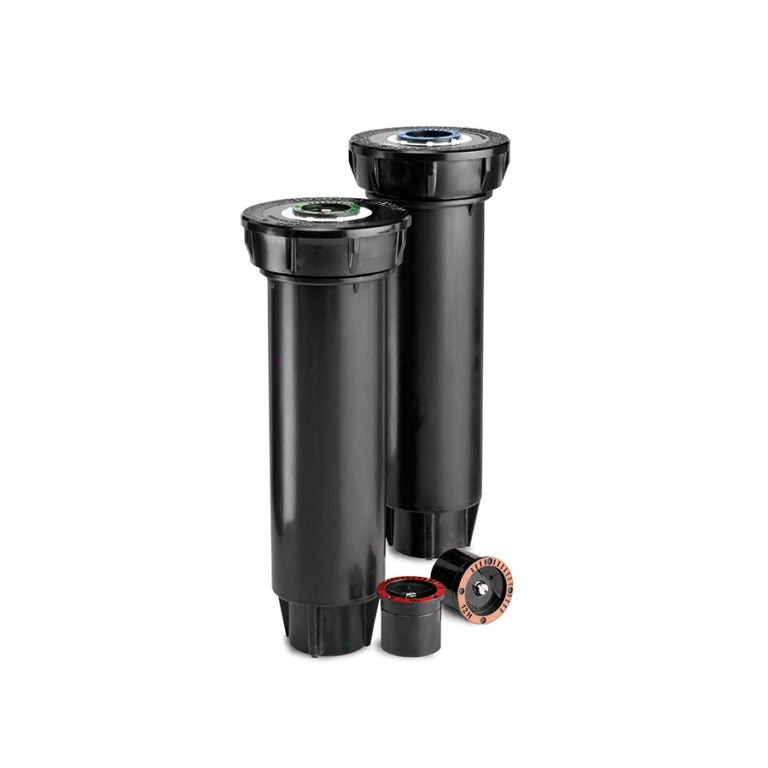

Fixed Arc MPR Nozzles and Variable Arc Nozzles are available to suit 1800 series sprinkler bodies
Size is for the height of the Pop-Up and does not include the height of the sprinkler body.
Installed in parks and backyards across the globe, Rain Bird’s 1800 Series is the #1 commercial-grade irrigation spray head brand in the world.
Chosen for its reliability, heavy-duty materials and versatility, the 1800 Series has first-rate quality built in for reliable operation and long life. Their superior components and features make them the spray heads of choice for a wide variety of applications.
Features
- Co-molded wiper seal provides unmatched resistance to grit, pressure and the environment
- Constructed of time-proven UV-resistant plastic and corrosion-resistant stainless steel parts, ensuring long product life
- Precision controlled flush at pop-down clears debris from unit, assuring positive stem retraction in all soil types
- Two-piece ratchet mechanism allows easy nozzle pattern alignment and provides added durability
- Five-Year Trade Warranty
The 1800 Series accepts all Rain Bird spray nozzles.
- Flow-by: 0 gpm at 8 psi (0.6 bar) or greater; 0.10 gpm (0.02 m³/h; 0.36 l/m) otherwise
Operating Range
- Spacing: 2.5 to 24 feet (0.8 to 7.3m)*
- Pressure: 15 to 70 psi (1.0 to 4.8 bar)
Dimensions
- ½” (15/21) NPT female threaded inlet

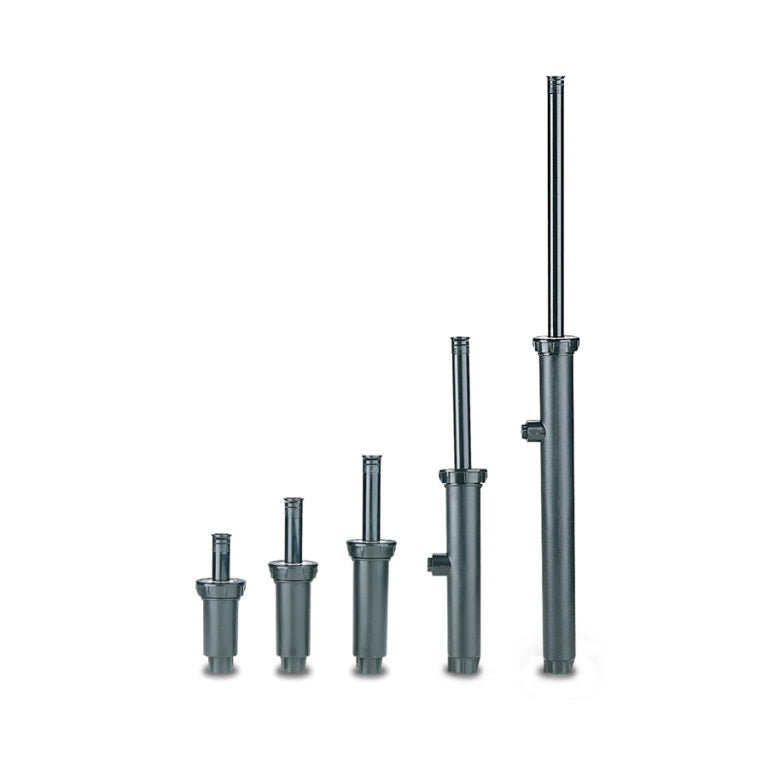

- Models and height:
- 1802: 4″ (10.2 cm) body height; 2″ pop-up height (5.1 cm)
- 1804: 6″ (15.2 cm) body height; 4′ pop-up height (10.2 cm)
- 1806: 9 3⁄8″ (23.8 cm) body height; 6″ pop-up height (15.2 cm)
- 1812: 16″ (40.6 cm) body height; 12″ pop-up height (30.5 cm)
- Exposed surface diameter: 2¼ ” (5.7 cm)
