Overview
- Internal filter
- Can be used with low density polyethylene
- Simple operation allows trouble free performance
- Heavy duty engineering plastic construction

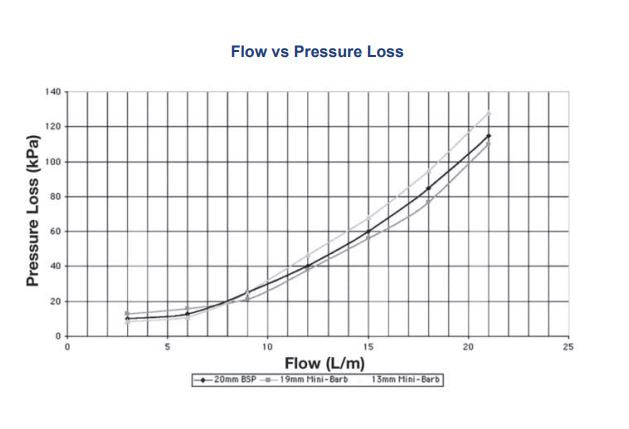

- Working pressure range 20-1400kPa Max flow 38lpm
- Viton Seal is suitable for Saltwater applications
Specifications
- Internal filter
- Can be used with low density polyethylene
- Simple operation allows trouble free performance
- Heavy duty engineering plastic construction
- Working pressure range 20-1400kPa Max flow 38lpm
- Viton Seal is suitable for Saltwater applications
Application

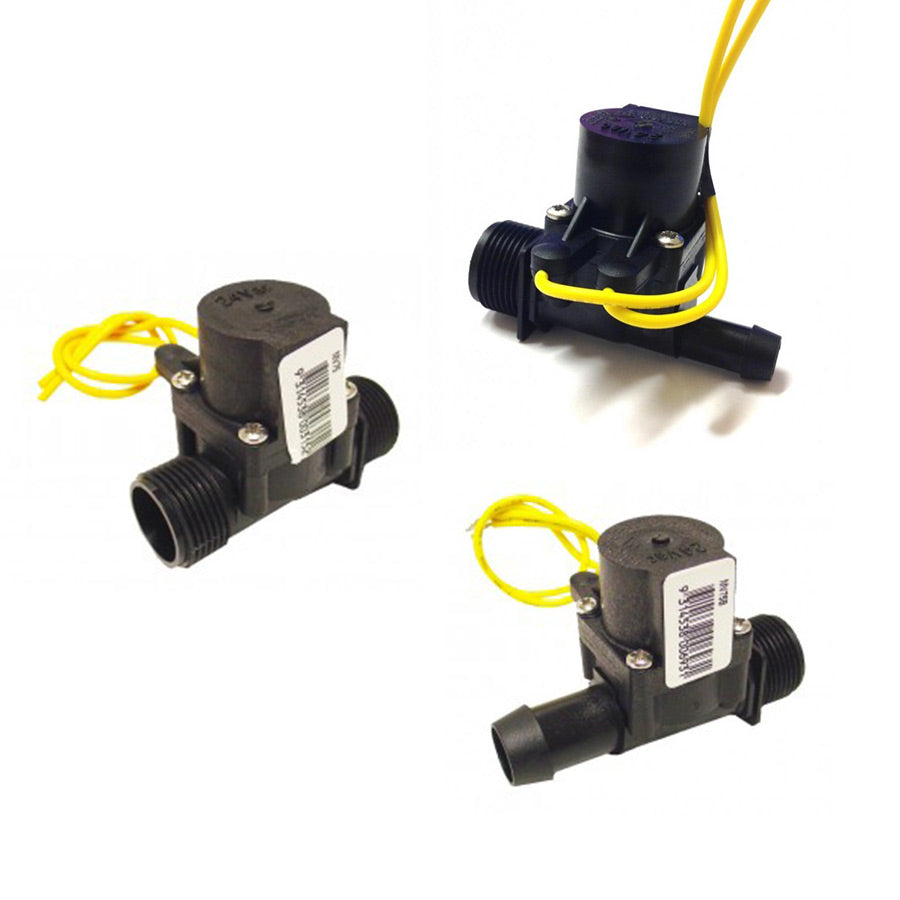

Mini control valve for use in drip or spray/jet home watering systems.
Electrical Specifications
- Solenoid: 24volt AC, 50Hz
- Inrush current: 0.5amp
- Holding current: 0.33amp
12VDC non latching solenoid valve, will not operate with battery operated irrigation controllers
